Machines
Plan Shifter

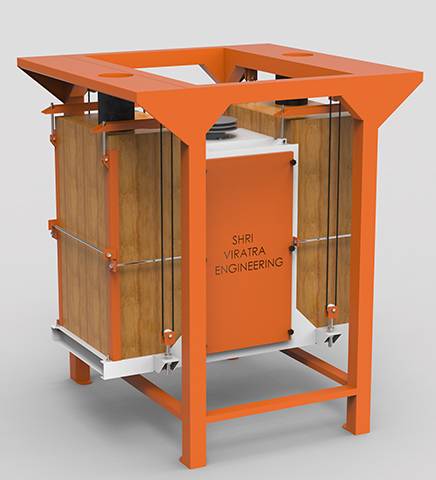

Shri Viratra Engineering is manufacturer and supplyer of advance techonology flour separating and classification plan shifter Machine. We are known for offering a quality- assured range of Planhifter Machines. These machines are available in several capacities ranging from 3 HP to 7.5 HP as well as in different grinding chambers. Manufactured quality tested components. These machines are precisely engineered to deliver quality outcomes. We offer these machines in the exact specifications provided by our customers. can be used in material sifting and classification, it can also be used for flour and corn for grading. Different quantities of silos and sieves can be selected to meet various application requirements. The flour plansifter contains three parts: a central drive unit and two lateral cabins hosing the sifting channels.With years of industry experience, we bring forth a qualitative range of Plan Sifter. The components used in manufacturing this machine are procured from the certified vendors and guaranteed of their quality. The increasing demands of our offered sifter in the market remain directly attributable to its high efficiency and low operational cost. Clients can avail the entire range from us at an affordable price. The advantages at a glance: High sifting capacity, Top sanitation, Efficient sieve cleaning, Reliable operation, Optimal use of space.
DATA
Technical data
| Automation Grade | Automatic |
| Machinery Weight | 500 KG - 2000 KG |
| Machine Material | Mild Steel |
| Power Type | AC |
| 3 HP- 7HP | |
| Phase | Three Phase |
| Voltage | 220 Volt/ 440 Volt |
| Vibro Motor | 2 HP X 1 Nos. |
| Driven Type | Pully, Belt |
| Flour Type | All Kinds |
| 70 - 80 % | |
| Production Capacity | 500-2000 kg/Hour |
| Recovery of Broken Pulses | Less than 1% |
| Warranty | 1 Year |
| Describtion | Power Required in HP |
Capacity Per
Houre in Tonnes |
Nett Weight in kgs |
Gross Weight
in kgs |
Shapping Volume IN Cu. Mtrs |
|---|---|---|---|---|---|
| PS-92(size-8x16) | 7.5 HP | 2.0-2.5 | 1000 | 1100 | 5 |
| PS-82(size-8x12) | 5 HP | 1.5-2.0 | 900 | 1000 | 5 |
| PS-72(size-4x12) | 3 HP | 1.0-1.5 | 650 | 750 | 4 |
| PS-62(size-2x12) | 3 HP | 0.75-1.00 | 550 | 700 | 3 |
parts
Machine Parts
Features
silent Features
High separating capacity
for High separating capacity and a quality flour we are providing imported quality nylon net in plan shifter machine for a quality mech flour and fast separating process we are providing imported nylon net seive
Minimum Mantanance
plan shifter is vibro oprating System.this is bearing less machine. planshifter service life depand on wooden seives fram. so we are using high quality wooden frame sieves in plan shifter for easy and fast cleaning, long life better performance
A one quality Flour
plansifter wooden frame easily change according requirement of flour mesh quality .this most benefit for our clients fro supply a one quality mash atta(flour)
Low space & power required
Plan Sifter is most useful in material shifting and classification. Plansifter Machine works in very low power requirement and minimum space for installation
Maximum service life
Our Plan Shifter is designed to minimize damage caused by abrasion and material classification. This improves the service life of the machine and ensure maximum uptime
wide variety of applications
Plan Shifter Is an ideal machine for processing of material shifting and classification of all type flour like wheat flour maize flour gram flour etc.
faqs
common questions
A. plan shifter Machine used for sifting flour and separating bran from flour.
A. 3 HP – 7.5 HP
